CESS

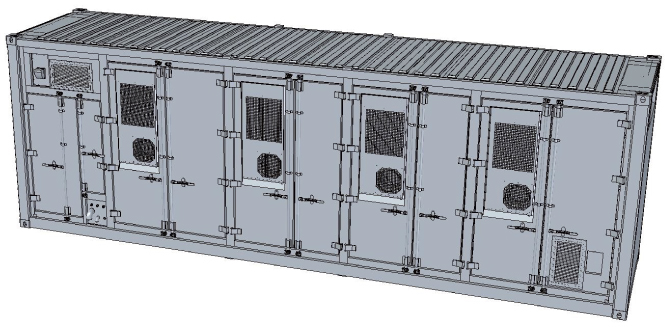

Core competency of MDT: CESS (Containerized ESS)
3rd Generation system
SPECIFICATION
| Item | Need to change of specification | |
|---|---|---|
| Basic information of the cell | Model | SPB123100302E1, ETI |
| Voltage | 3.7 V (Nominal) | |
| Capacity | 60.0 Ah (222.0Wh) | |
| Battery Pack specification | Out put Power | 298.37kW/1rack |
| Configuration | 224S-6P | |
| Nominal Voltage | 828.8V | |
| Capacity | 360Ah | |
| Voltage Range | 604.8V ~ 940.8V(2.7 ~ 4.2V/cell) | |
| Charging Voltage | 940.8V(4.2V/cell) | |
| Charging Current | Std 108.0A(0.3C), Max 180.0A(0.5C) | |
| Discharging Current | Std 108.0A(0.3C), Max 180.0A(0.5C) | |
| Dimension (mm) | 500(W) X 1390.0(D) X 2,200(H) | |
| Weight | TBD | |
| ESS Container specification | Capacity | 2.98MWh(10 Battery Racks)/1Container |
| Weight | TBD | |
| Energy Density | TBD(Only Battery container) | |
| Total ESS Container specification | Battery Capacity | 11.93MWh/4 Containers |
| Link panel | S-BMS, DC/AC Line, UPS, SMPS | |
| PCS | 3MW x 2ea | |
| Incoming panel | TR 3MVA x 2ea, VCB x 2ea | |
